NAP505

Карта изделия:

Тип	NAP505
EAN	6418677710124
Имя	Коробка с розетками Трехфазная, проходная с конвертацией фаз, белые и черные разъемы, 2 двойные розетки

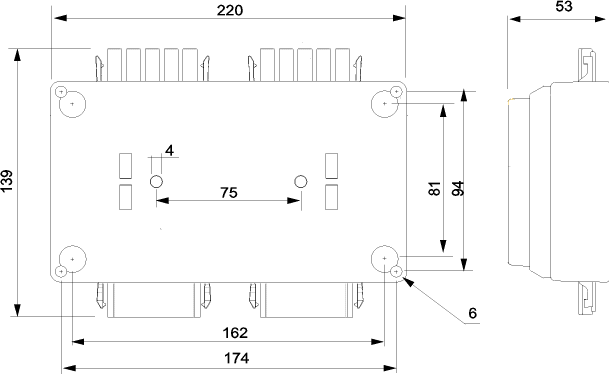

Описание	Socket outlet box NAP505, two three-phase continuous with internal phase rotations (power and secured power). These are branched into two double socket outlets. The socket outlet box can be fixed e.g. to the installation plate by screws, max. o 6 mm, four holes in the corners of the box. The boxes can also be fixed with two cable ties from the clamps on the box base. The third way of fixing is by using the so-called snap-on pins, for which there are four fixing holes on the box base.
Упаковка	/10/360
Единица	PCS

Класс герметизации	IP20
Номинальный ток (А)	20A
